You can download all of the standard EDI specs either in text format or in OpenEDI JSON format. The downloaded EDI specs can be used as EDI documentation and shared with partners or team members to create interactive mapping documents or generate clients/mocks in any programming language.

The downloaded EDI specs can also be used as the base for any amendments required when supporting partner-specific formats. All custom changes to an EDI spec can be reimported as a new model and used to overwrite the model that is automatically matched to an EDI message when analyzing it or converting it to JSON.

Explore and view EDI specifications

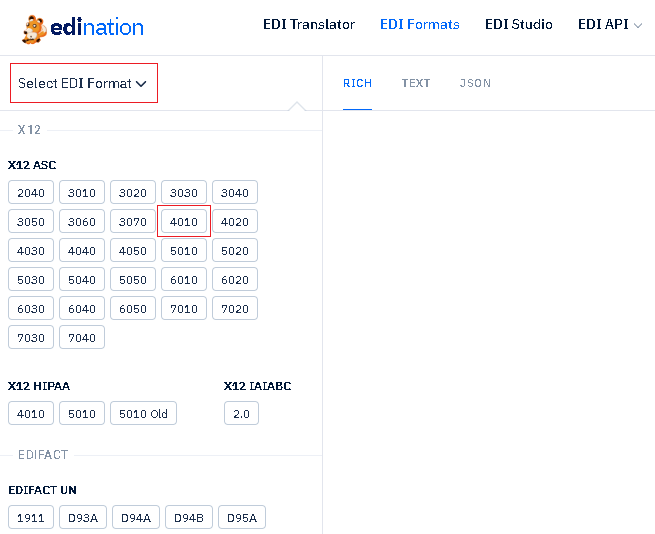

Navigate to the EDI Formats page and click on Select EDI Format, and then click on the required version to load all available specifications.

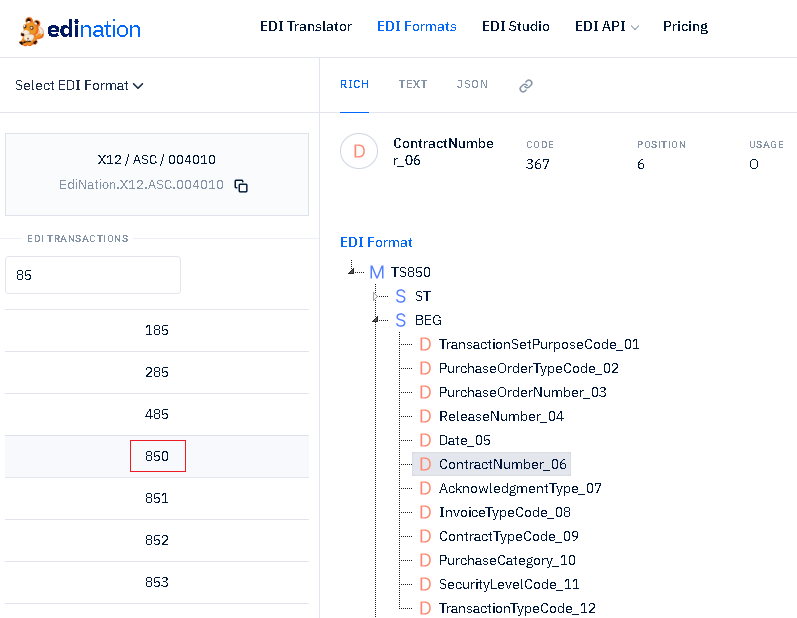

Once selected, all EDI specifications for the chosen EDI standard and version are loaded in a table. Click on any transaction ID to display the specification in rich view.

Use the filter box to find EDI specifications faster.

View and download as text

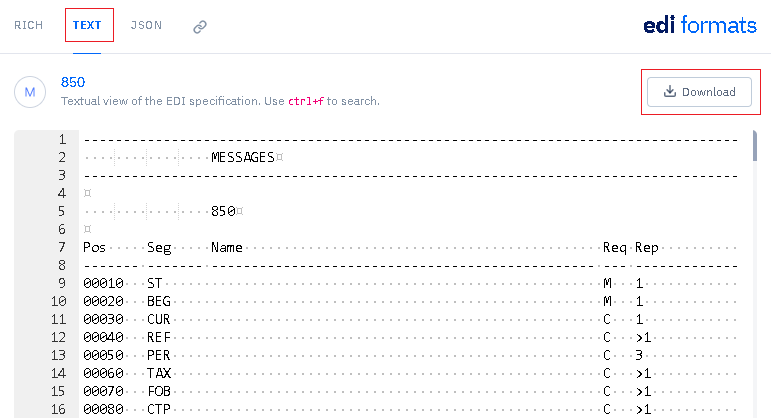

Navigate to the Text tab. View or edit the specification in text format (matching the format UNECE uses for all EDIFACT specifications). Download the EDI specification as a text file.

View and download as OpenEDI

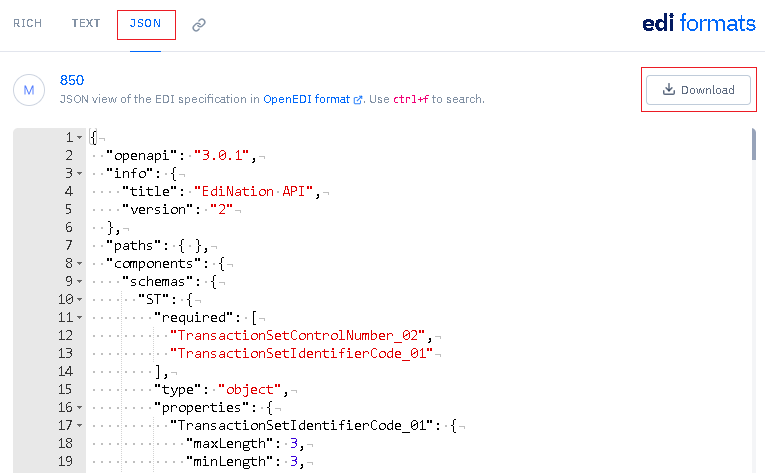

Navigate to the JSON tab. View or edit the specification in OpenEDI format. Download the EDI specification as a JSON file.

Supported EDI formats

EDI specifications are available as models for the following EDI standards:

• X12 ASC
• X12 HIPAA
• X12 IAIABC
• EDIFACT UN
• EDIFACT ACE
• EDIFACT IATA
• EDIFACT SMDG
• EANCOM GS1
• HL7
• VDA
• NCPDP TELCO
• NCPDP SCRIPT
