ediFabric Native is a self-contained, high-performance EDI engine compiled ahead-of-time to a native shared library. It converts EDI to JSON (and back), validates transaction sets, and generates acknowledgments — callable from any language with a C foreign-function interface (C, C++, Rust, Go, Python, Node.js, Java/JNA, .NET, …). No .NET runtime, JVM, or other dependency is required on the target machine.

• Fast — native code, zero-copy UTF‑8 buffers, streaming split/merge.
• Portable — a single native library per platform, no runtime install.
• Simple ABI — a handful of C entry points returning integer status codes.

Use of this library requires a valid license (see Licensing).

Package

The distribution contains one native library per platform, per EDI standard. At present, only the EDI X12 Standard is supported, with EDIFACT, NCPDP, HL7 and others due to be sequentially released in the coming months.

The library files for ediFabric Native X12 are:

Download

Plus your model files (per transaction set) and a map file that tells the engine where to find them.

Requirements

• A supported 64-bit OS (Windows / Linux / macOS).
• Internet access only for one-time license installation / token retrieval.
• No .NET runtime — the library is fully self-contained.

Quick start

1. Download the library from here.
2. Load the library with your language's FFI.
3. Authorize with a token or serial (see Licensing).
4. Load the model map once with set_map.
5. Parse EDI to JSON with parse (or stream with start_split / split).

set_token(token)          // or set_serial(serial)
set_map(mapJson)          // once
parse(edi, mode=1, …)     // EDI → JSON

All strings and payloads cross the boundary as UTF‑8 byte buffers (pointer + length). Every function returns 0 on success or a non-zero error code.

Examples

A comprehensive set of examples per programming language is available in GitHub:

Licensing

The serial key for the free plan is:

bd96a836feca45cb91c86ee65d281f52

A license is validated during parse/build operations. Choose one of two models:

Token (recommended — offline, high throughput)

get_token(serial)  → token      // one-time, requires internet; store the token
set_token(token)                // per process start; validated cryptographically

Tokens expire — query get_token_expiration and refresh with get_token as needed.

Serial (online — validates against the license server per operation)

install_license(serial)         // one-time per machine, requires internet
set_serial(serial)              // per process start

Use token mode for containers, air-gapped, or high-volume scenarios; serial mode is simplest for low-volume, always-online use.

API reference

Conventions used by every function:

• Returns int: 0 = success, non-zero = error code.
• Inputs are UTF‑8 byte* + int length.
• Output functions use grow-and-retry: if the buffer is too small the call returns 1 (InsufficientCapacity) and writes the required size into the length out-parameter; reallocate and call again.
• Exceptions never cross the boundary.

Model

int set_map(byte* map, int mapLength);

Loads the template map that resolves EDI transaction sets to model files. Call once before any parse/split. Cached until replaced.

Parse

int parse(byte* input, int inputLength,
          int mode,
          byte* config, int configLength,
          byte* output, int outputCapacity,
          int* outputLength, int* outputOffset);

Parses a whole interchange in one call.

• mode — see operation modes.
• config — optional ParseConfig JSON (null allowed).
• Output = transaction-set JSON, followed by validation/ACK JSON when mode ≥ 2:
  • *outputOffset = start of the errors/ACK section (0 when mode == 1).
  • *outputLength = total bytes written.

Split (streaming)

int start_split(byte* input, int inputLength, int mode, byte* config, int configLength);
int split(int* resultSize, int* resultOffset, byte* last);

Streams one transaction set at a time (low, flat memory use for large files).

• config must include a split section with a segment_id.
• Call split repeatedly; for each step with *resultSize > 0, fetch the payload with get_result. *last == 1 marks the final result.

Build

int build(byte* input, int inputLength,
          void* postfix,
          byte* output, int outputCapacity, int* outputLength);

Builds an X12 EDI string from transaction-set JSON. postfix is an optional null-terminated string appended after each segment terminator (e.g. "\r\n"); pass null for compact output. Grow-and-retry as with parse.

Merge (streaming)

int start_merge(byte* input, int inputLength);
int merge(int* resultSize);

Streams X12 segments from a full interchange JSON document. Each merge returns one segment (fetch with get_result); *resultSize == 0 ends the stream.

Results & errors

int    get_result(byte* buffer, int bufferSize);   // copy the last split/merge result
void*  get_error(int errorCode);                    // null-terminated message string

• get_result — bufferSize must equal the resultSize returned by the preceding split/merge call. The internal buffer is consumed on success.
• get_error — returns a human-readable message. The caller must free the returned string (free / Marshal.FreeHGlobal).

Logging & lifecycle

int init_logger(byte* pathUtf8, int pathLen, int minLevel);  // 0=Trace..4=Error
int shutdown_logger();
int clear_cache();   // reset model, split/merge state, results, license, logger

Operation modes

Any other value returns IncorrectMode (616).

Configuration JSON

All JSON uses snake_case keys and is case-insensitive.

Template map (set_map)

Map keys are message:version. type: 1 loads the model from a local file at location/name. Set default to fall back to the online service for unmapped transaction sets. The value for default must be your serial key.

{
  "default": null,
  "maps": {
    "837:005010X222A1": { "type": 1, "name": "837P.json", "location": "/opt/models" },
    "834:005010X220A1": { "type": 1, "name": "834.json",  "location": "/opt/models" }
  }
}



Models

All X12 transactions, such as 837P, 834, 850, etc. are represented as proprietary JSON. Download a standard model from EdiNation Spec Library, or a custom model from EdiNation Spec Builder. You create/modify models in OpenEDI format, upload them in EdiNation Spec Builder and download them as JSON for use in ediFabric Native.

To download a model in either EdiNation Spec Library or EdiNation Spec Builder, select the model first, then in the JSON view select the Download button in the top right corner:

Choose to download as ediFabric Native.

ParseConfig (parse)

{
  "validate": { "regex": null, "date_format": null, "time_format": null,
                "skip_seq_count": false, "skip_hl_seq": false,
                "snip_level": 0, "max_errors": 0 },
  "ack":      { "supress_ta1": false, "ak901p": false,
                "gen_for_valid": false, "gen997": false }
}

• validate — applied when mode ≥ 2; snip_level is 1–4.
• ack — applied when mode == 3.

All sections are optional for parse.

SplitConfig (start_split)

{
  "split":    { "segment_id": "ST", "segment_depth": 0, "loop_id": null }
}

• split — required for start_split;

Splitting is possible for the following boundaries:

• ST - splits by transaction for files that contain batches of transactions.
• Repeating loop - for files that contain batches of loops, such as order lines, claims or benefit enrollments.

The splitter must be configured as follows:

• segment_id  — the name of the segment to split by. It must be either ST or the first segment in the repeatable loop (Mandatory).
• segment_depth — the depth of the segment in the model hierarchy (Mandatory).
• loop_id — the name of the loop for the segment specified in segment_id (Optional).

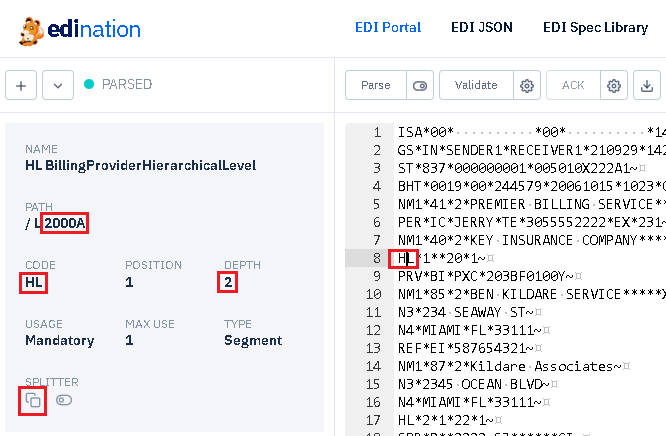

The values for the splitter can be found in EdiNation by loading a sample file. For example, if you want to split by loop 2000A in 837P, load an 837P file in EdiNation (or use the example one), click on the first segment in that loop, e.g., HL. segment_id is CODE,  loop_id is the last item in PATH, and segment_depth is DEPTH.

The easiest way to get the splitter configuration is to click on the copy button under SPLITTER that has the full splitter JSON pre-configured.

NOTE: If a segment does not show a SPLITTER copy button, than splitting is not possible by that segment.

Error codes

0 = success. Envelope/segment/element codes originate from the validation engine; the library-level codes are:

Call get_error(code) at runtime for the descriptive message.

Threading model

The library holds process-global state (loaded map, active split reader, active merge writer, last result, license) protected by an internal lock.

• parse and build are one-shot and independent per call.
• start_split/split/get_result and start_merge/merge/get_result are stateful sequences: run each sequence to completion without interleaving it with another split/merge on another thread. Serialize these sequences in your application.

Language bindings

C

extern int  set_map(const unsigned char* map, int len);
extern int  parse(const unsigned char* in, int inLen, int mode,
                  const unsigned char* cfg, int cfgLen,
                  unsigned char* out, int cap, int* outLen, int* outOff);
extern void* get_error(int code);

Python (ctypes)

import ctypes, json

lib = ctypes.CDLL("./edifabric-x12-tools.so")     # .dll / .dylib on other OSes
lib.parse.restype = ctypes.c_int

def set_map(map_json: str):
    b = map_json.encode("utf-8")
    if lib.set_map(b, len(b)) != 0:
        raise RuntimeError("set_map failed")

def parse(edi: bytes, mode: int = 1) -> str:
    cap = len(edi) * 12
    out_len = ctypes.c_int(0); out_off = ctypes.c_int(0)
    while True:
        out = ctypes.create_string_buffer(cap)
        rc = lib.parse(edi, len(edi), mode, None, 0, out, cap,
                       ctypes.byref(out_len), ctypes.byref(out_off))
        if rc == 1:                     # InsufficientCapacity
            cap = out_len.value; continue
        if rc != 0:
            raise RuntimeError(f"parse failed: {rc}")
        return out.raw[:out_len.value].decode("utf-8")

.NET (P/Invoke)

[DllImport("edifabric-x12-tools", EntryPoint = "parse")]
static extern unsafe int Parse(byte* input, int inputLen, int mode,
                               byte* config, int configLen,
                               byte* output, int outputCap,
                               int* outputLen, int* outputOffset);

Follow the same UTF‑8 buffer + grow-and-retry + get_result contracts from any other FFI-capable language.

Support

Questions, licensing, and model files: support@edifabric.com
